8CH 1080P HDD AI Mobile NVR

8CH Dual HHD/SSD MNVR, Full HD, 1080P/720P, GPS/Glonass/Beidou, 4G LTE, H.265/H.264, 1*RS232+1*RS485, G-sensor, RJ45, WIFI, Support Intercom, ADAS, DSM, BSD, Seat belt detection, AHD camera, Support: 8*AHD / 4*AHD+4*IPC / 8*IPC, Mobile NVR/MNVR.



  • Item NO.:

    TS-618-NVR
  • Order(MOQ):

    5
  • Payment:

    EXW
  • Product Origin:

    Shenzhen
  • Color:

    Black
  • Lead Time:

    Sample in 1-3 work days, big order in 7-30 work days.
Product Detail

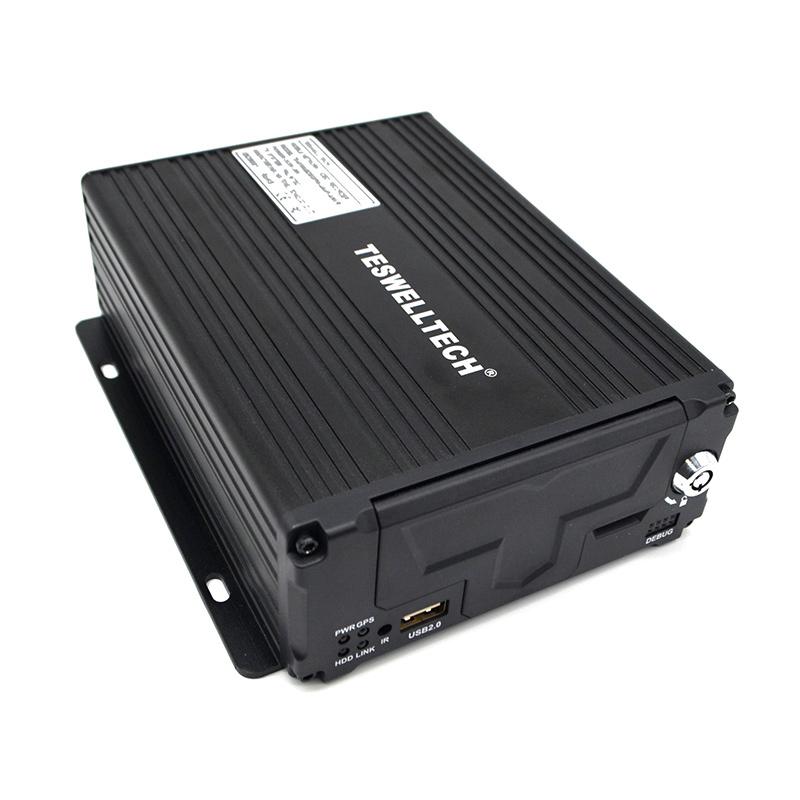

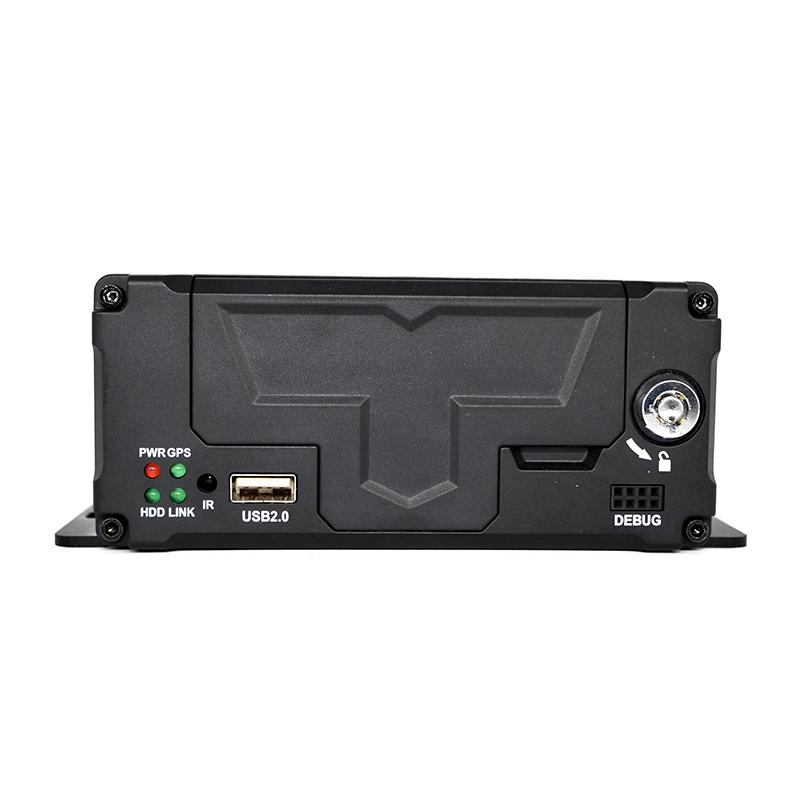

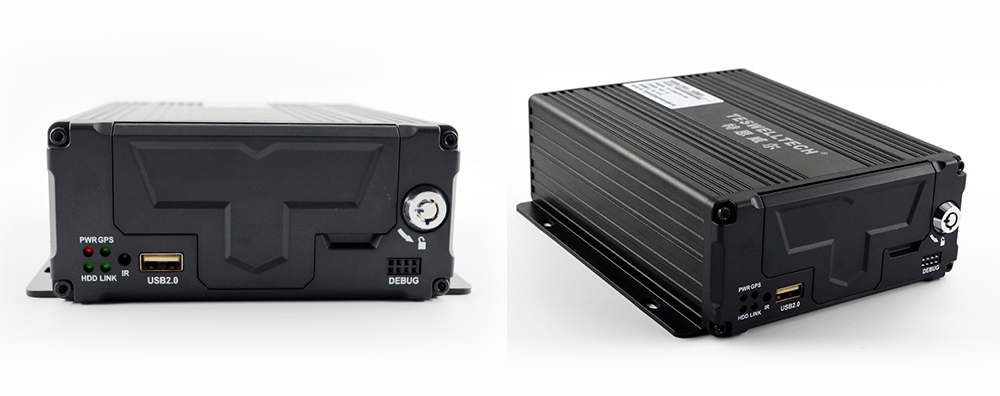

8CH 1080P HDD AI Mobile NVR


Product advantages:

TS-618X is a mobile NVR designed for transportation surveillance and provides 1080p 8-CH real-time live display with recording efficiency using advanced H.265 video compression technology. With a rugged EN50155 and MIL-STD-810G compliant design, the mobile NVR will provide durable and robust protection for all types of vehicle movement.


Product introduction:

H.264/H.265 compression, Linux system, dual stream.

● Supports 2.5inch HDD, 4TB max, SD card + HDD dual storage optional .

● 4/8CHs 720P/1080P real time video recording, audio sync recording.

● Supports timing, trigger, manual JPEG picture capture function.

 Intercom for 2-way communication function optional.

● Supports remote download and playback(Significant time and flow savings by file segment or precision to seconds).

● TES error correcting file system to prevent data from video losing.

● Supports alarm pre-recording, motion detection, alarm linkage.

● Can built-in 3G/4G, WiFi, GPS.

● 1*RS-232, 1*RS-485, 1*VGA output optional.

● Supports external device, such as LED monitor, station announcement, ID card reader,people counting camera etc.

● With car black box function, records important information such as speed, position, acceleration of gravity, braking, reversing, turning, and alarm etc.

● DC8-36V power supply, industry embedded design, anti-shock,anti-vibration.


Product Feature:

● Embedded Linux operating system

● H.265/H.264 compression

● 8CH AHD 1080P/720P real time video recording, audio sync recording.

● 1* HDD (max 4TB) + 1*SD card (max 256GB)

● Industry embedded design, military grade anti-vibration.

● High-Reliability and Cost-effective.


Product Parameter:

Item

Equipment Parameter

Performance Standard

Name

Name

TS-618 Series

System

Operation System

LINUX

Operation Interface

Graphical menu operation interface

Interface Language

Chinese, English, Portuguese, Russian, French, Turkish

Video

File System

TES error correction encryption file management system

Video Input

8CHs IPC/AHD 1080P input

VGA Output

1CH, support 1920*1080, 1280*720, 1024*768 resolution

CVBS Output

1CH aviation connector output PAL/NTSC, 1.0Vp-p, 75Ω,CVBS

Video Display

1CH/ 4 CHs/ 8CHs

Video Standard

PAL:25Frames /s;NTSC:30Frames /s

System Resource

PAL:200Frames /s,NTSC:240Frames /s

Audio

Audio Input

8CHs independent input,600Ω

Audio Output

1CH output,600Ω,1.0-2.2V

Record Format

Synchronized video & audio recording

Audio Compression

G711A

Video Standard

H.264/H.265

Active Safety Assisted Driving System

DSM

1CH DSM video input, support safety alarm of yawning, calling, smoking, blocked and device malfunction, etc.

ADAS

1CH BSD video input, support safety alarm of pedestrians, non-motorized vehicles, including front, side and back.

BSD

1CH BSD video input, support safety alarm of pedestrians, non-motorized vehicles(bicycles, motorcycles, electric bicycles, tricycles,etc), including front, side and back.

Digital processing and storage

Image Format

8*1080P(1920*1080)

Image Quality

1-14 levels adjustable (1 is the best)

Video Bit-rate

192Kbps-8Mbps(each channel)

Video Storage

85M-3600MByte/hour

Playback Resolution

1-8CH*1080P

Audio Bit-rate

4KByte/s(each channel)

HDD Storage

2.5inch SATA HDD (7mm), Max 4TB

SD Card Storage

1*SD card slot, Support 64GB/128GB/256GB

Alert

Alert Input

4CHs independent alarm input(High/Low level voltage)

Alert Output

2CH alarm output(High level voltage)

Motion Detection

Support

USB

HOST Interface

1*USB2.0 port in front board

Network

RJ45

1 RJ45 optional, 10M/100M/1000M adaptive

Wifi

Built-in WiFi module optional (IEEE 802.11b/g/n ), 2.4GHz or 5.8GHz optional

3G/4G

Built-in 3G/4G(FDD-LTE/TD-LTE/WCDMA/CDMA200) module optional

GPS

GPS

Built-in GPS/ GLONASS module optional

Other external port

TTL_UART Output

2 TTL_UART output(can be RS232 or RS485)

RS232

1*RS232 optional

RS485

1*RS485 optional

Intercom

1*MIC input optional

G-Sensor

Built-in G-Sensor module optional

Others

Power Supply & Consumption

DC8-36V 5%≤12W

Operating Tem/Humidity

-40℃~+70℃/≤80%

Dimension

170(L)*128(W)*56(H)mm

N.W.

1.14KG (without HDD)

G.W.

1.24KG (without HDD)



Product Application:

8CH Durable HDD MNVR work in bus, truck, train and forklift, etc. for vehicle security video surveillance.

FAQ:

1: MDVR does not start?
a: Please check the power supply of the host to see if the power of the host is connected correctly and whether there is real voltage to the host
b: Whether the key switch of the host is locked
c: Whether the ignition control line of the host is connected properly,
d: whether there is a control voltage input (when testing in the office, the ignition control line is directly connected to the positive pole of the host power input)

2:The hard disk video recorder automatically restarts after a few minutes of startup or often crashes?
a: Input voltage is unstable or too low
b: The hard disk wiring is loose or poorly connected
c: Hard disk has bad sectors
d: Poor heat dissipation, too much dust, and the machine operating environment is too harsh
e: Inadequate installation of anti-vibration facilities

3:The remote control does not work?
a: Check the power section on the remote control
b: If the hard disk is installed, check whether the hard disk is inserted in place

4:Can't enter the settings menu?
The factory default of this machine is to automatically record when the system is started, unless it is manually stopped or the system is powered off;
to enter the setting menu, you must first stop the recording with the stop button on the remote control, and then press the menu button to enter.
