12CH Dual HDD 1080P Vehicle Mobile DVR

12CH Dual HHD/SSD MDVR, Full HD, 1080P/720P, GPS/Glonass/Beidou, 4G LTE, H.264, USB3.0, 3RS232+2RS485, G-sensor, RJ45, WIFI, Pulse speed, Support Intercom, Dual 4G Sim card, AHD camera, Support: 12*AHD / 8*AHD+4*IPC /4*AHD+8*IPC/ 12*IPC, Mobile DVR/MDVR.



  • Item NO.:

    TS-9212-DVR
  • Order(MOQ):

    1
  • Payment:

    EXW
  • Product Origin:

    Shenzhen
  • Color:

    Black
  • Lead Time:

    Sample in 1-3 work days, big order in 7-30 work days.
Product Detail

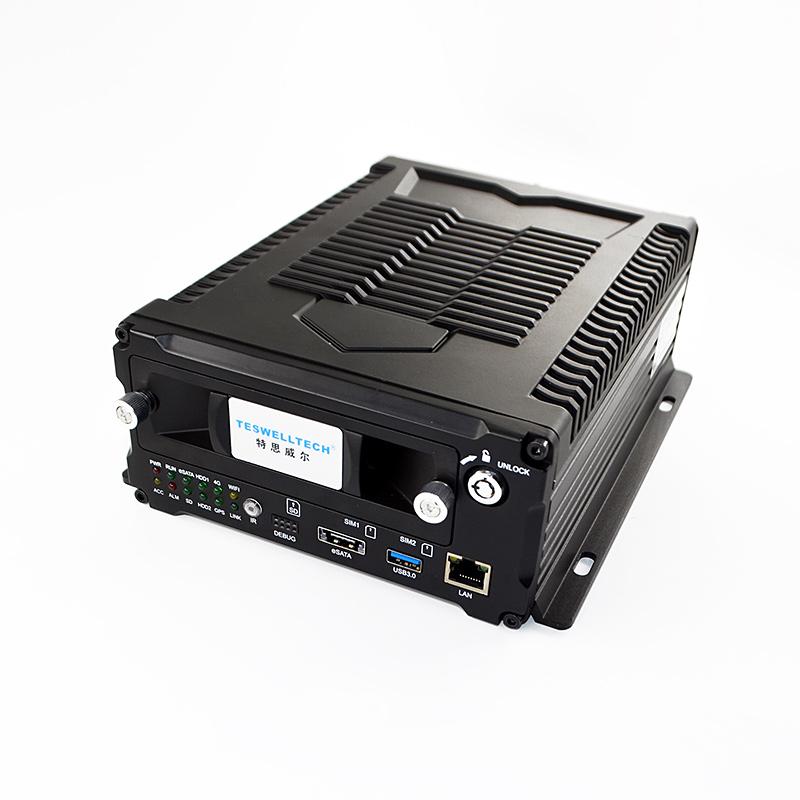

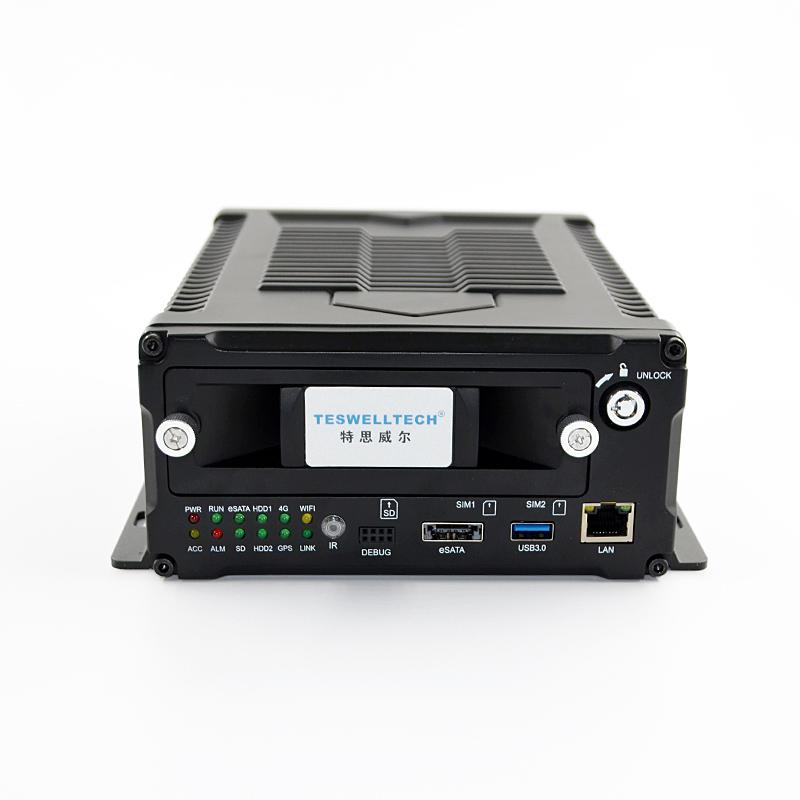

12CH Dual HDD 1080P Vehicle Mobile DVR


Product Advantages:

TS-9212 MDVR with a strong, robust design and a cast aluminium enclosure, this MDVR provides 3G/4G, GPS, G-Sensor and WiFi for options, as a reliable video surveillance system, the user can download video as well as live vehicle tracking in real time. It also has standard aviation connector, which provide stable connections between cameras and the DVR, making sure all the functions aren’t affected by shaking or vibrating.


Product Introduction:

● H.264/H.265 video format.

● 12 video input, 1 video output, full real-time video (12 960H / 720P / 960P / 1080P).

● 12 audio input, 1 audio output, and video synchronous recording.

● Supports 1*VGA output, 1*CVBS video output.

● Recording image quality support 1-14 levels adjustable.

● Use a dedicated file system to improve the life of the hard disk; can not manually modify the hard disk storage video, audio data, can be more reliable evidence.

● Pull-type hard disk box, support two 2.5-inch 7mm or one 2.5-inch 15mm hard drives.

● eSATA*1, backup video data become more faster. USB 3.0*1, make backup video data become more faster, software

upgrades and maintenance more convenient.

● Supports 12 channel video, audio playback at the same time.

● Supports video, playback, network monitoring synchronization.

● With user password management function.

● 12CH alarm input,3CH alarm output (2CH relay output,1CH 12V output), 2CH analog input.

● Supportmax 24hrs off delay.

● DC9-36V wide range voltage supply to adapt to vehicle voltage fluctuations.

● Supports two-way shared 12V, 1A power output, support for two-way sharing 5V, 1A power output.

● RS232 *3, RS485 *2 (PTZ control).

● Two-way voice intercom interface.

● G-sensor function.

Product Feature:

● Military standards anti-vibration

● Encrypted

● Dual HDD SSD Lockable

● HD 1080P H.264/H.265

● Up to 4TB Storage

● Live Vehicle Tracking

● Real time Video Recording

● Built-in GPS/Glonass, WIFI, 4G and G-sensor



Product Parameter:


Item

Equipment Parameter

Performance Standard

Name

Name

12CH MDVR

System

Product Name

12 Channel Mobile DVR (HDD)

Operation System

Linux

Operation Interface

Graphical interfaces, Chinese/English/Portuguese/Russian/French/Turkish optional

File System

TES proprietary format

System Privileges

User password

Video

Video Input

12*1080P/720P/960H

Video Output

1 channel PAL/NTSC output, 1.0Vp-p,75Ω,pin aviation connector

1 channel VGA support 1920*1080,1280*720,1024*768 resolution

Video Display

1/4/12 Screen Display

Video Standard

PAL: 25frames/Sec; NTSC: 30frames/Sec

System Resources

PAL:300 Frames; NTSC:360 Frames

Audio

Audio Input

12 channels independent input 600Ω

Audio Output

1 channel

Recording Mode

Sound and image synchronization

Audio Compression

G711A

Digital
Processing
& Storage

Image Compression

H.264/H.265

Image Format

8*1080P/720P/960H

Video Stream

192K-4.0Mbit/s

Video Taking Up Of Hard Disk

85M-1800MByte/hour

Playback Resolution

1080P

Audio Bitrate

4KByte / s / channel

Audio Taking Up Of Hard Disk

14MByte / hour / channel

HDD Storage

2*2.5'' SATA HDD(7mm thick),max 1*4TB(15mm)

SD Card

1*SD, Supports 64GB/128GB/256GB

Image Quality

14 levels adjustable

Alarm

Alarm Input

12 Channels Independent Input, activated by high voltage

Analog Alarm Input

2 channels analog alarm input

Alarm Out

3 Channels Independent output (2 relay,1 DC 12v output)

Move Detect

Available

USB

Host Access

2*USB (front USB3.0)

eSATA

E-SATA

Support backup files via E-SATA port

LAN

Wire Line Access

Can extend one RJ45 Ethernet Port

Wifi

Can extend one Wifi Module Inside

3G/4G

Can extend two FDD-LTE/TD-LTE/WCDMA/CDMA2000 Modules Inside

GPS

GPS

Can extend GPS/GLONASS Module Inside

Extension

RS232

Supports 3*RS232 extensible, easy to connect with other vehicle equipment

RS485

Supports 2*RS485 extensible, easy to connect with other vehicle equipment or PTZ Camera

Pulse Speed

One channel pulse speed

Intercom

Can extend Intercom module inside

G-Sensor

Can extend G-Sensor module inside

Canbus

Can extend 2*Canbus module inside

Amplicate Interface

Supports 2 amplifiers, 1 Inside and1 outside bus (default non-standard, need to select O function)

Others

Power Consumption

DC 9-36V 5% ≤12W

Working Temperature

-40℃~ +70℃ ≤80%

Dimension

235 (L) *190 (W) * 80 (H) mm(with Holder)

N.W.

3.2KG (without HDD)/unit

G.W.

3.4KG (without HDD)/unit

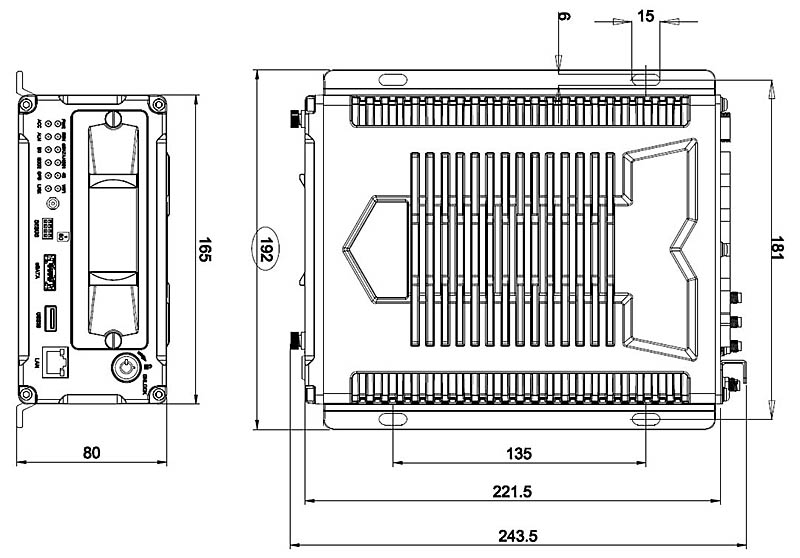

Product Size:


Product Application:

High level MDVR can widely work in logistics vehicles, long-distance passenger transport, dangerous goods transport, bus companies or fleets, vehicle rental, taxi and other industries, require up to 12 cameras.

FAQ:

1: MDVR does not start?
a: Please check the power supply of the host to see if the power of the host is connected correctly and whether there is real voltage to the host
b: Whether the key switch of the host is locked
c: Whether the ignition control line of the host is connected properly,
d: whether there is a control voltage input (when testing in the office, the ignition control line is directly connected to the positive pole of the host power input)

2:The hard disk video recorder automatically restarts after a few minutes of startup or often crashes?
a: Input voltage is unstable or too low
b: The hard disk wiring is loose or poorly connected
c: Hard disk has bad sectors
d: Poor heat dissipation, too much dust, and the machine operating environment is too harsh
e: Inadequate installation of anti-vibration facilities

3:The remote control does not work?
a: Check the power section on the remote control
b: If the hard disk is installed, check whether the hard disk is inserted in place

4:Can't enter the settings menu?
The factory default of this machine is to automatically record when the system is started, unless it is manually stopped or the system is powered off;
to enter the setting menu, you must first stop the recording with the stop button on the remote control, and then press the menu button to enter.
