Item NO.:
TS-541Vehicle ultrasonic fuel consumption sensor
Product introduction
TS-541 Vehicle ultrasonic fuel consumption sensor uses high-frequency ultrasonic detection technology to measure the height of non-contact liquid surface of fuel and liquid substances. Compared with the traditional liquid level detection equipment, the ultrasonic liquid level has high measurement accuracy and is easy to use. It can be mounted (does not destroy the container structure) and connected to the networked equipment to achieve remote liquid level monitoring. The ultrasonic oil level sensor is specialized for the installation and algorithm optimization of the vehicle oil volume monitoring, which can adapt to the complex road conditions and the real-time oil volume monitoring for the vehicles with a special fuel tank, and can also output stable data to the tank liquid level of the dangerous goods transport vehicles. It is also a kind of Vehicle DVR fuel control system.
Product characteristics

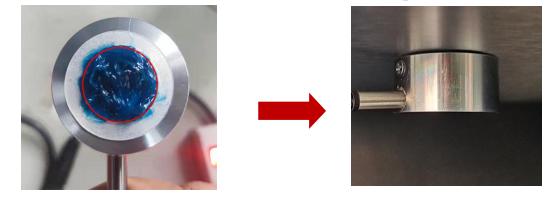

Waterproof, lightweight structure design, do not open hole installation;
Unique double bolted bolt fixed bracket, simple installation, firmly fixed, easy to remove;
DC 5V and 9~36V power supply, suitable for a variety of positioning host and vehicles;
RS232 / RS485 / 4-20mA current / 0-5V voltage analog quantity of four communication interfaces;
Super signal strength, suitable to fuel tanks and tanks of different materials;
Built-in anti-interference structure and circuit, intelligent algorithm filtering, high and stable output;
Built-in high-precision calculation model, millimeter-level measurement resolution
Scope of application
Vehicle remote fuel consumption monitoring;
Body fluid level monitoring of hazardous chemical transport vehicles;
Remote monitoring of fuel consumption of construction machinery;
Water level monitoring of the sprinkler water tank;
Monitoring of fuel consumption of Marine fuel tank;
Liquid level measurement of liquid storage tank (single level);
Filling of liquid gas measurement
Essential parameter
Parameter | Specification description | Remarks | |
Input voltage | DC 5V | DC9～36V | Two voltage versions |
Working current | ≦20mA | ≦30mA | |
Anti-hazard classification | Benan Exia II CT6 | ||
Measuring range | 46～1000mm | （1） | |
Measurement accuracy | ≤0.5%FS | （1） | |
Resolution ratio | 0.1mm | ||
Measuring Angle | 0～5° | （2） | |
Thickness of tested | 0.6～5.0mm | Blind area of 5cm (3) | |
5.0～10.0mm | Blind area of 10cm (3) | ||
≥10.0mm | （3） | ||
Communication interface | RS232 / RS485 | （4） | |
Communication rate | 9600 bit/S | Porter rate adjustable | |
Line order definition | Black-ground line; Red-positive pole; Yellow-TX / B; Green-RX / A | ||

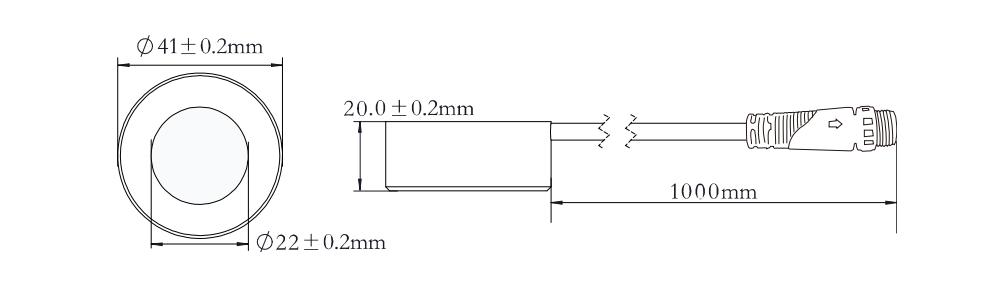

Product size
