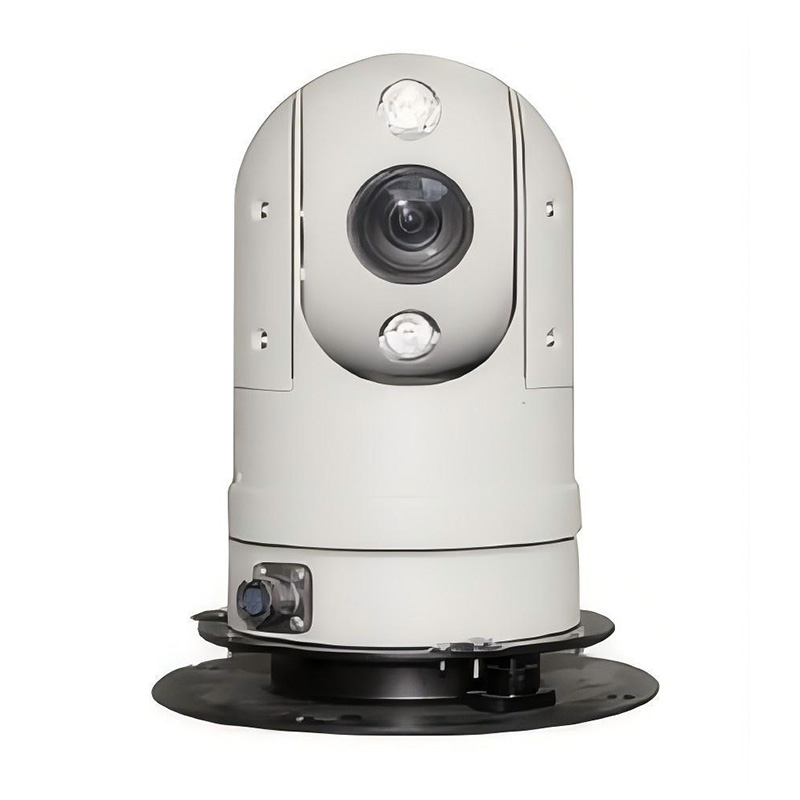

Small pan-tilt camera TS-3023C12-AHD

Features：

Employs a highly integrated 16-bit processor, offering extremely low power consumption and exceptional stability. Includes a built-in Osram high-intensity LED chip.

Utilizes a 0.9° precision motor drive, ensuring smooth, stable, and vibration-free operation at low speeds. Utilizes industrial-grade components, suitable for various extreme weather conditions.

Can be equipped with different camera modules upon request, including IPC and AHD analog modules.

Can be mounted directly onto video conferencing systems.

With a powerful magnet, it can be used for portable outdoor vehicle-mounted monitoring.

With a shock absorber for fixed-point installation, it enables all-weather vehicle-mounted monitoring.

Technical parameters：

Horizontal manual control speed: 0°~220°/s

Vertical manual control speed: 0°~90°/s

Preset points: 256 preset positions

Horizontal resolution: 720P/960P/1080P selectable

Relative humidity: 90%

Protection rating: IP66

Operating temperature: -35℃~+75℃

Power input: DC11V～DC18V

Weight: 2.5Kg
