The Advanced Driving Assistance System, or better known as the ADAS System, is a mechanism that improves motorist safety at the time of driving, and thus minimizes the risk of suffering a road accident or colliding with other vehicles GC1054 CMOS Image Sensor FULL HD-720P 3D-NR
Item NO.:
TS-381C10-AHDFeatures
·GC1054 CMOS Image Sensor
·FULL HD-720P
·3D-NR

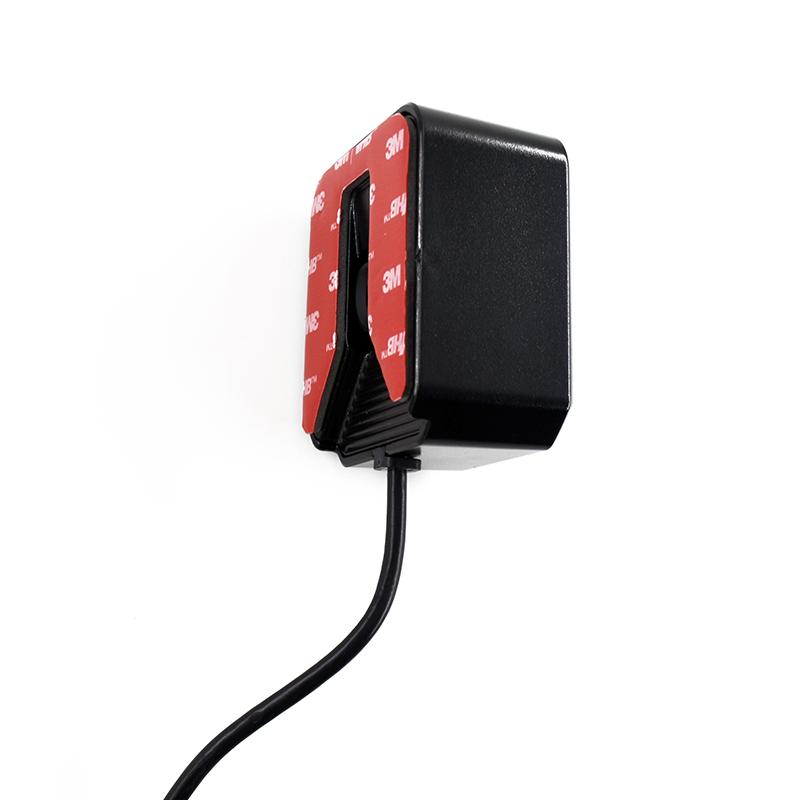

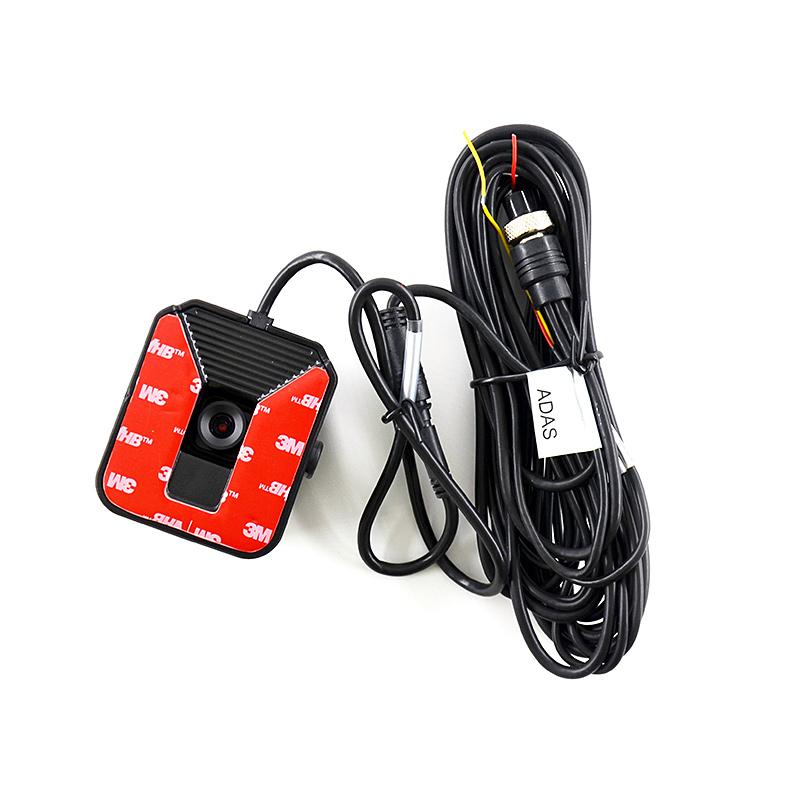

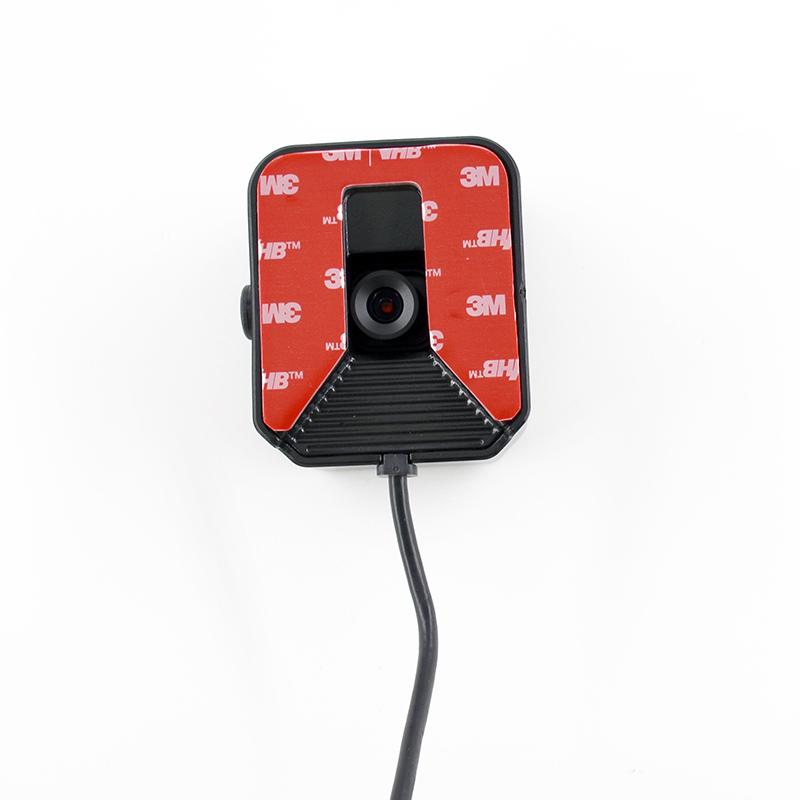

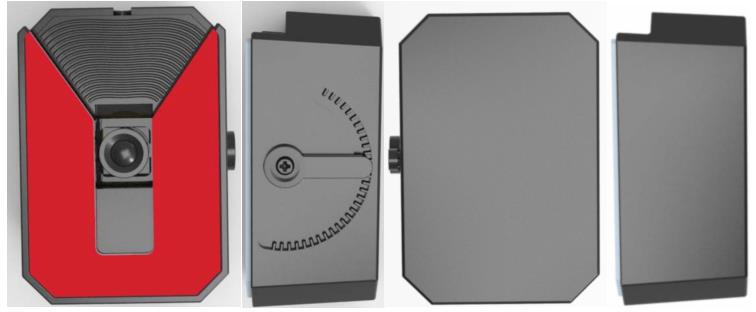

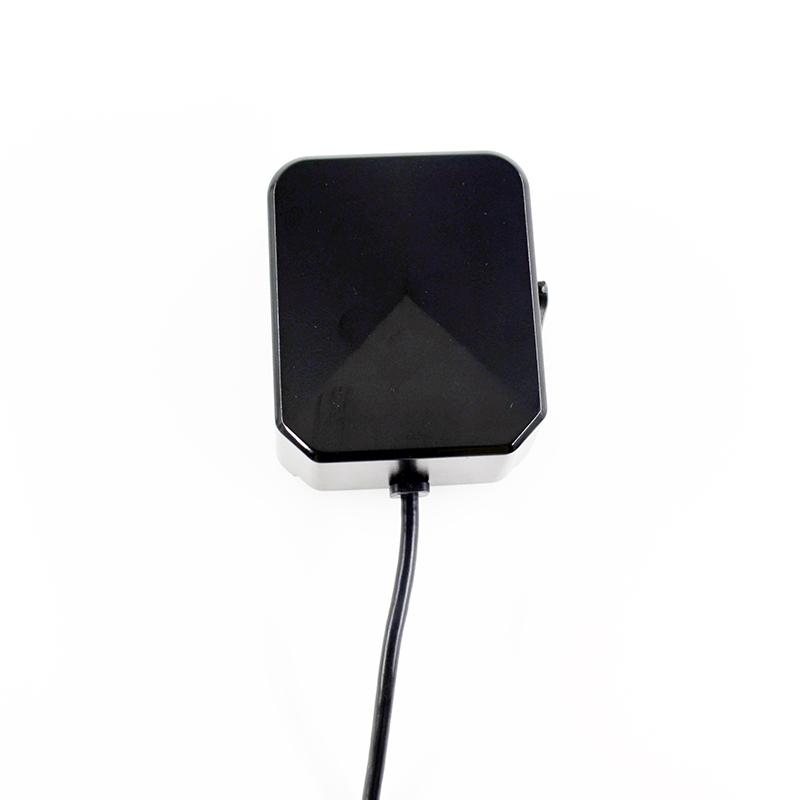

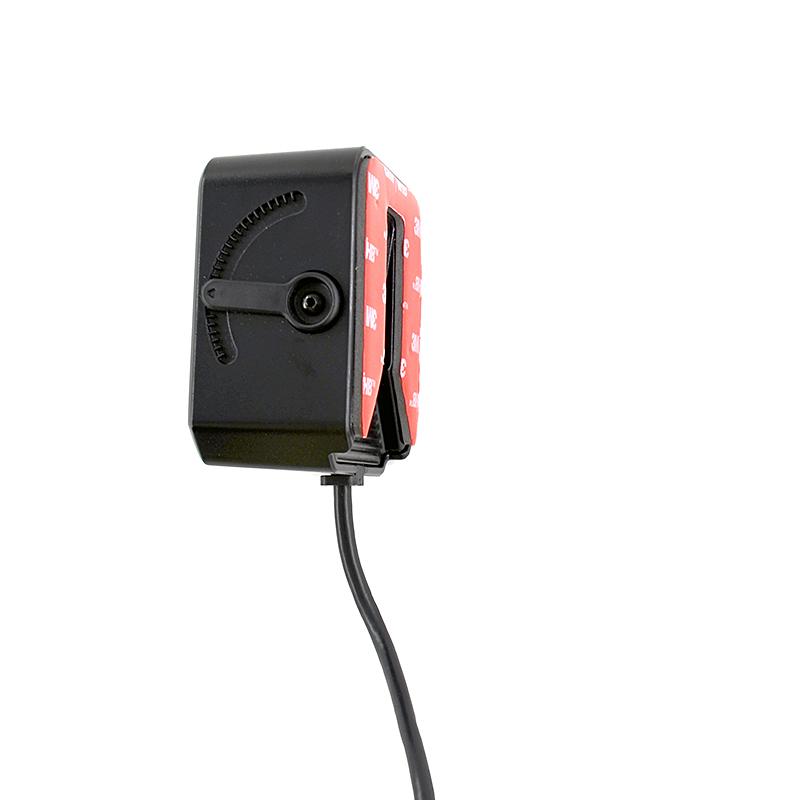

Illustration
Model:TS-381C10-AHD
Parameter
Specifications | Model | TS-381C10-AHD |
Name | ADAS Camera | |
Sensor | GC1054 | |
Image Sensor | 100W CMOS Sensor | |
Image color | Color | |
Focal Length | 4mm | |
IR | 650nm(Blue wave) | |
View Angle | D=60° H=52° V=29° | |
Signal Type | PAL | |
FPS | 25fps | |
Properties | Temperature | -20℃~70℃ |
Humidity | ≤ 90 % | |
Voltage | 9V~16V | |
Cable Length | 2.5m |
Pin Feet Definition
PIN | Name | Pin Type | Function |
1 | VCC | Power | 12V |
2 | GND | Power | GND |
3 | NA | NA | NA |
4 | VIDEO | AHD | Video |
